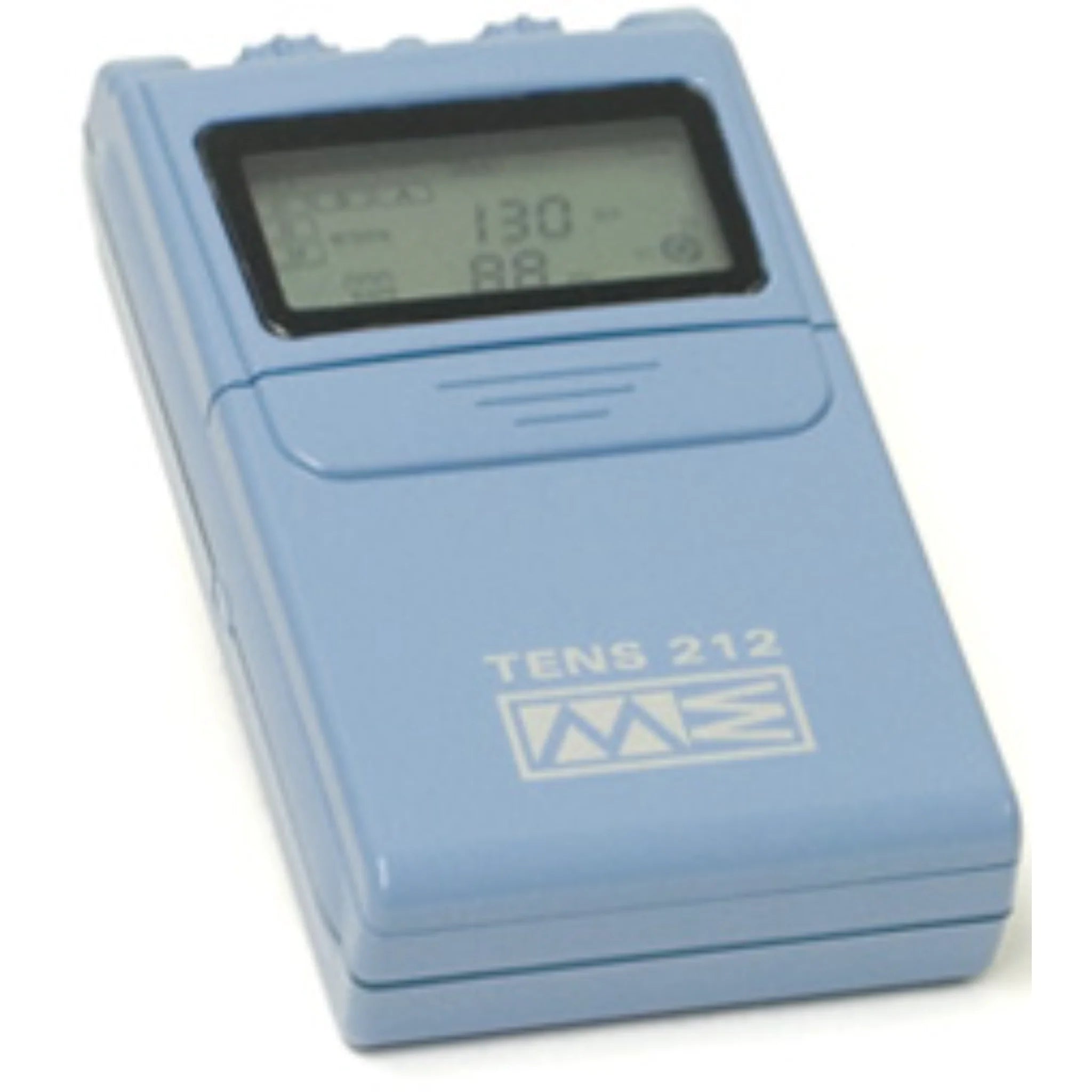

Mettler Electronics TENS 212

Mettler Electronics TENS 212

The TENS 212, from Mettler Electronics, is a two channel digital TENS device that provides continuous, modulated and burst modes. Pulse frequency and width may be set independently. The large LCD display is easy to see from any angle and provides a visual of all your waveform parameters.

TENS = Transcutaneous (through the skin) Electrical (⚡) Neuromuscular (nerves that go to the muscles) Stimulation

Bring powerful relief wherever you go.

Features

• Portable design with carrying case
• Manual pulse frequency and width adjustments
• Auto-off timer: 15, 30, or 60 min
• Three Modes:
  • Burst (cycle): 2 Bursts/sec, 9 pulses / Burst, 100 Hz, width is adjustable
  • Continuous mode: Pulse rate, pulse width and intensity are adjustable
  • Modulated Width: Pulse width is automatically varied in an interval of 6 seconds. The modulation range of pulse width is from setting value to 35% less than the control setting value, then returns to the setting value. Rate, width and intensity are fully adjustable.

Includes

Each product comes with:

• TENS 212 unit
• Carrying case
• Set of four V-Trode™ self-adhesive electrodes
• 9 volt battery
• Instruction manual

Specifications

Weight: 5 oz. (140 grams), battery included

Dimensions: 4.25″ (H) x 2.4″ (W) x 1″ (T) / 108 mm (H) x 61.5 mm (W) x 25 mm (T)

Wave form: Asymmetrical Biphasic square pulse

Voltage: 0-110 Volts (Open Circuit)

Max charge per pulse: 21 micro-coulombs

Pulse intensity: Adjustable 0-80 mA peak into 500 Ω load each channel, constant current

Pulse Rate: 1Hz-160 Hz (adjustable), 1Hz/step (1-20 Hz), 5Hz/step (20-160 Hz)

Pulse Width: 50 μs – 260 μs (adjustable), 10 μs/steps

Warranty (Mettler Electronics Corp.):

• Unit: 1 year
• Accessories: 90 days
