Specifications

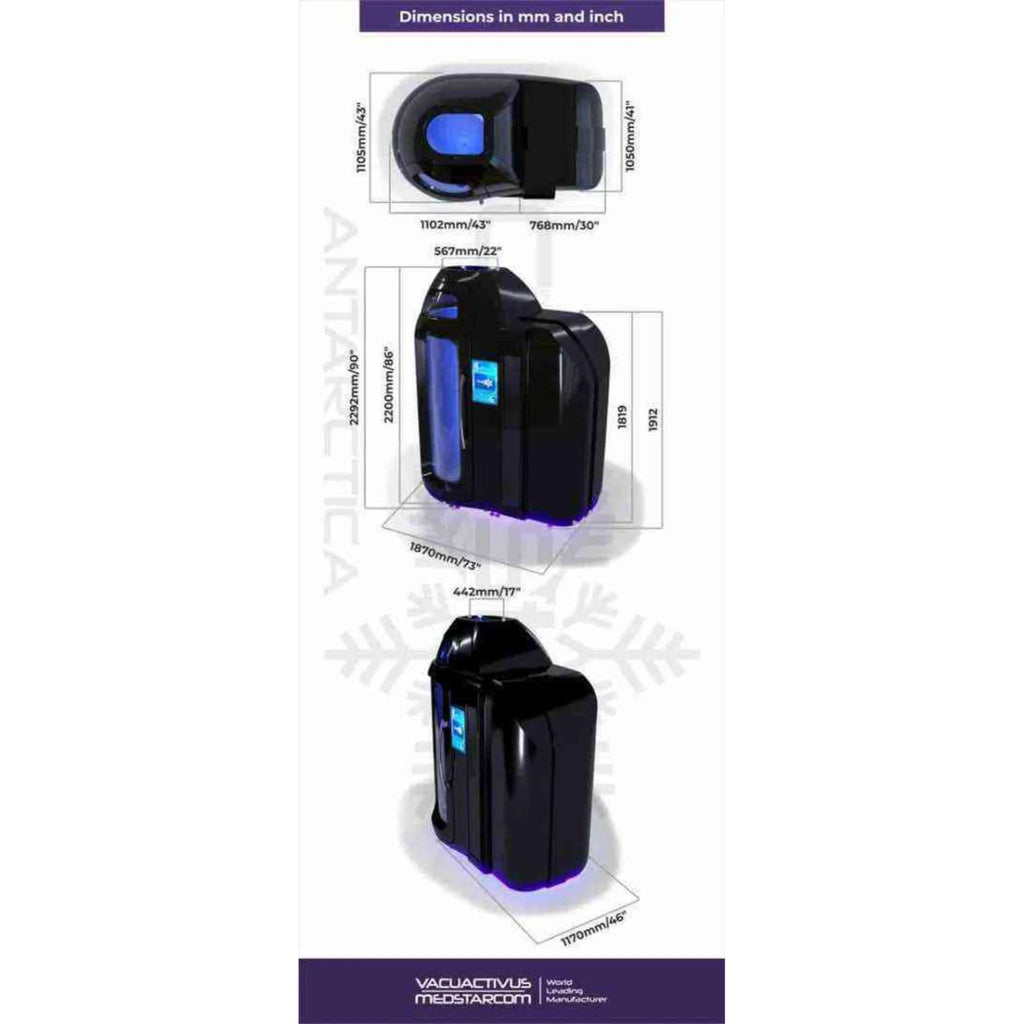

Dimensions (Simple Version): 73" L x 43" W x 92" H (1.87m H x 1.105m W x 2.292m H)
Dimensions (Grand Version): 86" L x 43" W x 92" H (2.23m H x 1.105m W x 2.292m H)
Temperature Range: -100°F to -146°F (-80°C to -100°C)
Weight: 450 kg/990 lb, With packing crate: 600 kg/1322 lb
Safety Features: Thermal camera, oxygen sensor, and emergency stop systems.
Power: 110V/60Hz or 220V/50Hz
Shipping
Manufacturer's Delivery & Installation Policy:
Due to the size and weight of the equipment, we provide curbside (driveway) delivery only. White-glove service is not included. Clients must arrange local movers or request factory technicians (if available in their area).
Shipping and installation are charged separately. Freight rates are based on real-time market pricing and depend on carrier selection, destination ZIP code, and equipment dimensions. We provide exact freight quotes upon receiving a specific customer request.
Some equipment requires minimal setup; however, certain models (such as cryotherapy chambers) require professional installation, which is provided for an additional fee.
Installation
Compressor:
Simple: Single compressor 3 phase electric power required (400V/50Hz or 208V/60Hz). Up to 25A per phase and 8.5kWh.
Grand: Dual compressors 3 phase electric power required (400V/50Hz or 208V/60Hz). Up to 30A per phase and 12.5kWh.
Cooling System:
Air cooled version:
- Min room size from 150 sq ft
- Fresh air intake at least 5000m sq
- AC system and ventilation fan to keep room < 20C/68F and humidity < 30%
- Rubber/waterproof flooring
Water cooled version:
- Minimum room size: 12m sq/120 sq ft
- Plumbing installation including water and drain line,
- Cold water supply up at least 1.5m3/h
Water chiller version:
- Outside temperature max 95F (35C)
- Pipe connection line
- Outside space to install chiller
- Special power and water refill supply
Plumbing:
- 3/4" PVC water line and 2" drain line required
Disclaimer
This equipment is for sports recovery, rehabilitation, and for fitness and wellness purposes only. These are not medical products approved by the FDA. Current products can not be used in any advertising descriptions, in any other websites or informative ways, including social media, as statements of healthcare benefits of the equipment. Those who do produce false information on our equipment will be liable for all or any statements regarding healthcare futures and benefits of equipment that are provided to clients. Cryonick Wellness Technology Factory products are not available for sale to Canada.
